Why a module that passes bench testing can still create integration risk in the final RF system
The module passed bench testing. The integrated system still failed verification.

This is one of the most expensive surprises in an RF project. The output power shown on a datasheet may be correct, yet the module can behave differently after it is connected to the real power supply, filters, switches, cables, antenna, control logic, and thermal structure.

The problem is not always insufficient wattage. In many cases, the real issue is that the RFPA (Radio Frequency Power Amplifier) was evaluated as an isolated module rather than as part of the complete RF chain.

For system integrators, UAV communication equipment manufacturers, RF test platform developers, and other technical teams, meaningful RFPA verification should answer a more practical question: can the required power remain stable under the conditions of the final system?

1. Bench performance is only the starting point

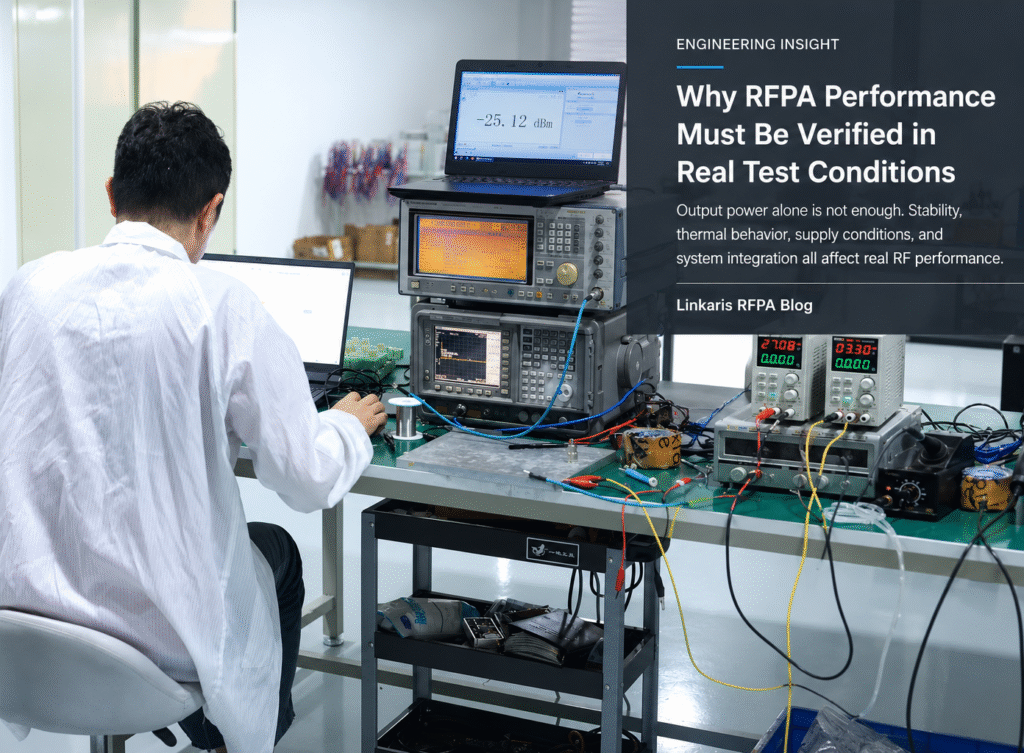

A controlled bench setup is useful because it allows engineers to measure a module under defined input, supply, load, and cooling conditions. It confirms whether the amplifier can reach the expected frequency range, gain, and output power under those conditions.

But a successful bench result does not automatically guarantee successful system integration. Once the RFPA enters a real platform, several conditions change at the same time:

• The available input drive may be lower than the level used during bench testing.
• The system power supply may experience voltage drop, current limitation, ripple, or transient behaviour.
• The module may be installed on a different heat sink or inside a restricted enclosure.
• Filters, switches, isolators, connectors, and cables may introduce additional loss.
• The antenna or load may not remain perfectly matched during operation.
• The actual duty cycle may be higher than the original test condition.
• Nearby electronics and mechanical constraints may affect the final RF and thermal environment.

This is why RFPA testing should not stop at a single power reading. The test conditions must be defined, recorded, and connected to the customer’s actual integration environment.

2. Output power alone does not define system reliability

Output power is important, but it is only one part of the engineering decision. A higher-power module may increase the pressure on the power supply, thermal path, mechanical space, protection design, and antenna system. If these conditions are not evaluated together, a module with a stronger wattage rating may create more integration work rather than solve the original problem.

Verification area	What should be checked	Why it matters after integration
Frequency and gain behaviour	Coverage across the required band; gain level and flatness	Confirms that the module can be driven correctly across the actual operating band.
Output power under defined drive	Input power, supply condition, output level, compression behaviour	Prevents a nominal wattage value from being separated from the conditions required to achieve it.
Supply current and stability	Voltage, current, ripple, current limit, transient response	Identifies power-related instability before the module enters the final platform.
Thermal behaviour	Baseplate temperature, cooling method, duty cycle, continuous operation	Shows whether the module can maintain performance as heat accumulates.
Spectrum quality	Harmonics, spurious content, gain behaviour, signal integrity where applicable	Reduces the risk of unwanted emissions or degraded signal quality.
Load and protection response	Antenna/load condition, reflected power, VSWR protection requirements	Helps protect the module when the real load is not ideal.
Repeatability	Consistency across repeated tests and multiple units	Supports predictable transition from sample approval to batch delivery.

3. Six common reasons an RFPA changes after integration

Insufficient input drive

An RFPA can only reach its target output when the preceding signal source or driver stage provides the required input level. A module may appear underpowered when the actual issue is insufficient drive.

Unstable supply voltage or current

Voltage drop, limited current capability, cable loss, ripple, and transient behaviour can change gain, output power, and operating stability.

Restricted thermal path

The module may perform well on a laboratory heat sink but behave differently inside a compact enclosure, portable platform, or vehicle-mounted system where airflow and heat spreading are limited.

Load or antenna mismatch

A changing antenna environment or unsuitable load can increase reflected power. This may reduce usable output, trigger protection, or expose the module to reliability risk.

Higher real duty cycle

A short bench test does not represent continuous operation. A higher duty cycle raises average thermal load and changes the conditions the RFPA must survive.

Losses elsewhere in the RF chain

Cables, filters, switches, connectors, and other RF components can reduce the power that finally reaches the antenna or load. Replacing the PA with a higher-power model may hide the loss without solving the chain problem.

4. The Linkaris pre-integration review

At Linkaris, the starting point is not simply, “How many watts do you need?” Before recommending a standard or customized RFPA solution, we first review the conditions that determine whether the module can be integrated predictably.

• Required frequency range
• Target output power
• Available input power from the signal source or driver stage
• Supply voltage and available current
• Continuous-wave, pulsed, or intermittent duty cycle
• Cooling method and available thermal path
• Antenna or load condition, including VSWR protection requirements
• Module size, interface, and installation limits
• Application platform and project stage

This review does not replace the customer’s complete system validation. Its purpose is to identify obvious mismatches early, define realistic test conditions, and reduce unnecessary redesign after the RFPA is installed.

5. What technical buyers should ask an RFPA supplier

A credible RFPA discussion should go beyond a headline output-power value. Before selecting a supplier or approving a module, technical teams should ask:

• Under what input, supply, load, cooling, and duty-cycle conditions was the output power measured?
• Is the stated frequency range for one module or for a broader product family?
• How does gain and output behaviour change across the required band?
• What thermal interface and cooling conditions are required?
• What happens under antenna mismatch or high reflected power?
• Which protections are included, and which protections must be implemented at system level?
• How is repeatability checked between samples and batch units?
• Can the supplier review the system conditions before recommending a module?

These questions are not intended to make procurement more complicated. They help prevent an apparently simple RFPA purchase from becoming a later power-supply, thermal, RF-matching, or mechanical redesign.

6. From a tested module to a predictable RF system

The purpose of RFPA verification is not to produce an impressive laboratory image or a single high output reading. The purpose is to understand the conditions under which the module can deliver stable and repeatable performance.

For a system integrator, that means fewer unknowns before prototype integration. For a technical buyer, it means a more meaningful comparison between solutions. For the project team, it means reducing the risk that a power, thermal, load, or interface problem is discovered only after the design has progressed.

A reliable RFPA is therefore not defined only by how much power it can produce. It is defined by whether that power can remain controlled, testable, and suitable for the intended system environment.
